5.4. RF

5.4.1. RF Schematic and Antenna Path

Quick Summary

  • Route the antenna path as a 50 Ω controlled-impedance trace.
  • Reserve a π matching network even if the selected antenna is already matched.
  • Keep the RF path short, shielded, and isolated from crystal, DC/DC, display, and charger noise.

Design Goal

Maximize Bluetooth sensitivity and radiated performance by preserving impedance control, minimizing discontinuities, and leaving enough matching flexibility for final antenna tuning.

RF trace characteristic impedance is 50 Ω. If the antenna is already matched, no additional RF components are required, but a reserved π-type matching network is still recommended for spurious filtering or antenna tuning.

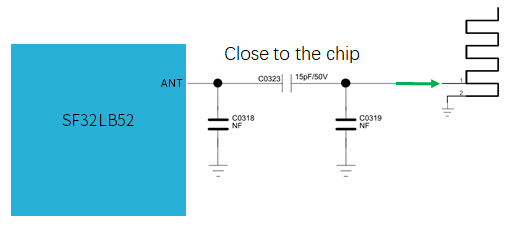

Figure 5.4-1: RF Circuit Diagram

Figure 5.4-1: RF Circuit Diagram

Figure 5.4-1 shows a 15 pF, 50 V series capacitor (C0323); the two shunt positions C0318 and C0319 are marked NF (not fitted). These are reference values, not a universal antenna match. Keep the matching network close to the chip-side RF pin and determine its final population from measurements on the assembled product.

5.4.2. RF Review and Tuning

Common Mistakes - RF

  • Placing the matching network near the antenna instead of close to the chip-side RF pin.
  • Routing RF through unnecessary vias or sharp bends.
  • Sharing noisy ground return paths with DC/DC, display, USB, or charger circuits.
  • Omitting the matching reserve and leaving no practical antenna-tuning path.

RF Checklist

  • RF trace impedance target is defined with the PCB vendor.
  • Pi matching network is reserved and placed close to the chip.
  • Ground-via fence and RF keep-out are reviewed.
  • Provide access for antenna tuning and certification testing before finalizing the enclosure design.

5.5. User Interfaces

5.5.1. Display

Quick Summary

  • Supported interfaces include SPI, Dual-SPI, Quad-SPI, serial JDI, and EPD on supported regular-powered variants.
  • Maximum documented display resolution is 512 x 512.
  • Reset, TE, backlight PWM, touch I2C, touch interrupt, and display power sequencing should be reviewed together.

Design Goal

Select a display interface that meets bandwidth and power targets while preserving wake, reset, backlight, and touch behavior across normal operation and low-power states.

The chip supports 3-Line SPI, 4-Line SPI, Dual-data SPI, Quad-data SPI, and serial JDI interfaces, with 16.7M-color (RGB888), 262K-color (RGB666), 65K-color (RGB565), and 8-color (RGB111) depth modes, up to 512x512 resolution.

Supported LCD driver models:

Table 5.5-1: Supported LCD Driver List
Model Manufacturer Resolution Type Interface
RM69090 Raydium 368x448 AMOLED 3/4-Line SPI, Dual/Quad-data SPI, MIPI-DSI
RM69330 Raydium 454x454 AMOLED 3/4-Line SPI, Dual/Quad-data SPI, 8-bit 8080 MCU, MIPI-DSI
ILI8688E ILITEK 368x448 AMOLED Quad-data SPI, MIPI-DSI
SH8601A Shine World Technology 454x454 AMOLED 3/4-Line SPI, Dual/Quad-data SPI, 8-bit 8080 MCU, MIPI-DSI
SPD2012 Solomon 356x400 TFT Quad-data SPI
GC9C01 Galaxycore 360x360 TFT Quad-data SPI
GC9B71 Galaxycore 320x380 TFT Quad-data SPI
ST77903 Sitronix 400x400 TFT Quad-data SPI
ICNA3311 Chipone 454x454 AMOLED Quad-data SPI
FT2308 FocalTech 410x494 AMOLED Quad-data SPI

Display-driver interfaces are not MCU capabilities

Table 5.5-1 lists the interfaces offered by the LCD driver ICs, not interfaces that are all available on SF32LB52x. A driver entry mentioning MIPI-DSI or an 8-bit 8080 MCU bus does not establish MCU support for that interface. Select a panel interface supported by both the exact MCU variant and the driver.

5.5.1.1. SPI/QSPI Display Interface
Table 5.5-2: SPI/QSPI Signal Connections
SPI Signal Pin Description
CSx PA03 Chip select
WRx_SCL PA04 Clock
DCx PA06 Data/command in 4-wire SPI; data 1 in Quad-SPI
SDI_RDx PA05 Data input in 3/4-wire SPI; data 0 in Quad-SPI
SDO PA05 Data output in 3/4-wire SPI; short together with SDI_RDx
D[0] PA07 Data 2 in Quad-SPI
D[1] PA08 Data 3 in Quad-SPI
RESET PA00 Display reset
TE PA02 Tearing-effect signal to MCU
5.5.1.2. JDI Display Interface

JDI terminology in the source

The original application notes describe serial JDI in their capability summaries but label the following pin table as parallel JDI. The source pin assignments are retained here. Before fixing the schematic, confirm the intended JDI mode, panel requirements, and support for the exact MCU variant; do not treat the serial and parallel interfaces as interchangeable.

Table 5.5-3: Parallel JDI Signal Connections
JDI Signal I/O Description
JDI_VCK PA39 Shift clock for the vertical driver
JDI_VST PA08 Start signal for the vertical driver
JDI_XRST PA40 Reset signal for horizontal and vertical drivers
JDI_HCK PA41 Shift clock for the horizontal driver
JDI_HST PA06 Start signal for the horizontal driver
JDI_ENB PA07 Write enable signal for pixel memory
JDI_R1 PA05 Red image data (odd pixels)
JDI_R2 PA42 Red image data (even pixels)
JDI_G1 PA04 Green image data (odd pixels)
JDI_G2 PA43 Green image data (even pixels)
JDI_B1 PA03 Blue image data (odd pixels)
JDI_B2 PA02 Blue image data (even pixels)
5.5.1.3. EPD Display Interface

The chip supports an 8-bit parallel EPD display interface:

Table 5.5-4: EPD Signal Connections

EPD Signal I/O Description
CLK PA04 Source-driver clock
CKV/CPV GPIO Gate-driver clock
SPH PA06 Source-driver start pulse
SPV/STV GPIO Gate-driver start pulse
LE GPIO Source-driver latch enable
OE GPIO Source-driver output enable
D0–D7 PA07/PA08/PA37/PA39/PA40/PA41/PA42/PA43 Source-driver data, bits 0–7
GMODE GPIO Output mode selection, gate driver
VPOS/VNEG TPS Positive/negative power supply, source driver
VGH/VGL TPS Positive/negative power supply, gate driver
VCOM TPS Common connection
TPS_WAKEUP/TPS_PWRUP GPIO TPS PMIC wake-up / power-up control
TPS_SDA/TPS_SCL I2C TPS PMIC I2C interface
TPS_PWRCOM GPIO TPS PMIC VCOM_CTRL, VCOM enable
TPS_GOOD GPIO TPS PMIC power-good output

Note

Signals marked "PA**" must use the fixed IO assignment shown. Signals marked GPIO can be assigned to any IO. Signals marked TPS come from the display PMIC (TPS) output to the panel. Signals marked I2C require an IO with I2C capability.

Not Applicable

SiFli's official SF32LB520/3/5/7 hardware application note does not include an EPD parallel-interface reference design. If your product needs EPD display support, consult the 52B/D/E/G/J documentation and confirm feasibility for the battery-powered variant with SiFli FAE support directly.

5.5.1.4. Touch and Backlight Interface

The SF32LB52x supports an I2C touch-controller interface with a touch-status interrupt input, plus one PWM signal for backlight enable and brightness control.

Table 5.5-5: Touch and Backlight Connections
Touch/Backlight Signal Pin Description
Interrupt PA43 Touch status interrupt (wake-capable)
I2C1_SCL PA42 Touch I2C clock
I2C1_SDA PA41 Touch I2C data
BL_PWM PA01 Backlight PWM control
Reset PA44 Touch controller reset

Common Mistakes - Display

  • Forgetting reset, TE, backlight PWM, or touch interrupt pins during pin assignment.
  • Assuming EPD support on the battery-powered variant without confirming the actual device and source design.
  • Powering the display from an internal LDO rather than an appropriately sized external rail.
  • Routing display clocks and data beside crystal, RF, audio, or high-impedance analog nodes.

Display Checklist

  • Display interface, color depth, resolution, and bandwidth match the selected panel.
  • Reset, TE, backlight PWM, touch I2C, and touch interrupt are assigned and documented.
  • Display power rail and sequencing are compatible with standby and wake behavior.
  • Bring-up plan covers reset, panel ID/readback where available, backlight, touch interrupt, and first image.

5.5.2. Audio Interface

Quick Summary

  • The analog microphone input is single-ended and requires a DC-blocking capacitor.
  • The DAC output is differential and should be routed as a short, shielded differential pair.
  • Audio power filtering and MIC_BIAS placement strongly affect noise performance.

Design Goal

Preserve analog signal quality by keeping microphone, DAC, bias, and audio power paths short, filtered, shielded, and isolated from digital and switching-noise sources.

The audio interface provides:

  1. One single-ended ADC input for an analog microphone, with a DC-blocking capacitor of at least 2.2 uF in series; the microphone is powered from the chip's MIC_BIAS output.
  2. One differential DAC output for an external audio PA. Route it as a differential pair with proper ground shielding; keep trace capacitance < 10 pF and length < 2 cm.
Table 5.5-6: Audio Signal Connections
Audio Signal Pin Description
BIAS MIC_BIAS Microphone power
AU_ADC1P ADCP Single-ended analog microphone input
AU_DAC1P DACP Differential analog output, positive
AU_DAC1N DACN Differential analog output, negative

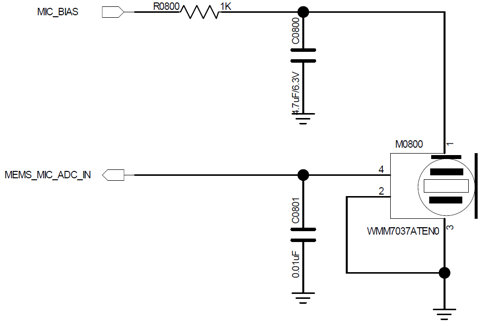

Figure 5.5-1: Analog MEMS MIC Single-Ended Input Circuit

Figure 5.5-1: Analog MEMS MIC Single-Ended Input Circuit

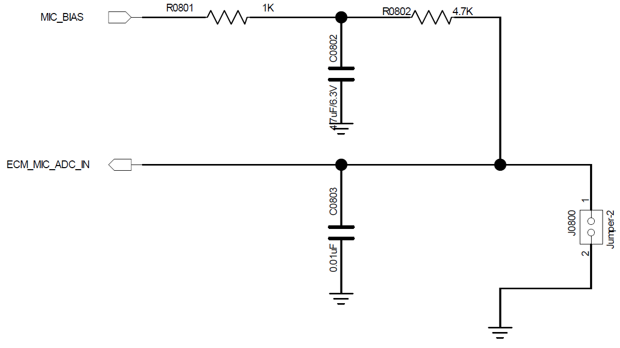

Figure 5.5-2: Analog ECM MIC Single-Ended Input Circuit

Figure 5.5-2: Analog ECM MIC Single-Ended Input Circuit

The microphone examples filter MIC_BIAS with a 1 kΩ series resistor and a 1 uF, 6.3 V capacitor to ground. The ECM circuit also uses a 4.7 kΩ microphone-bias resistor. Both examples show a 0.01 uF input capacitor to ground; it is a shunt filter, not the series DC-blocking capacitor required in the signal path. Retain the distinction when adapting these reference circuits.

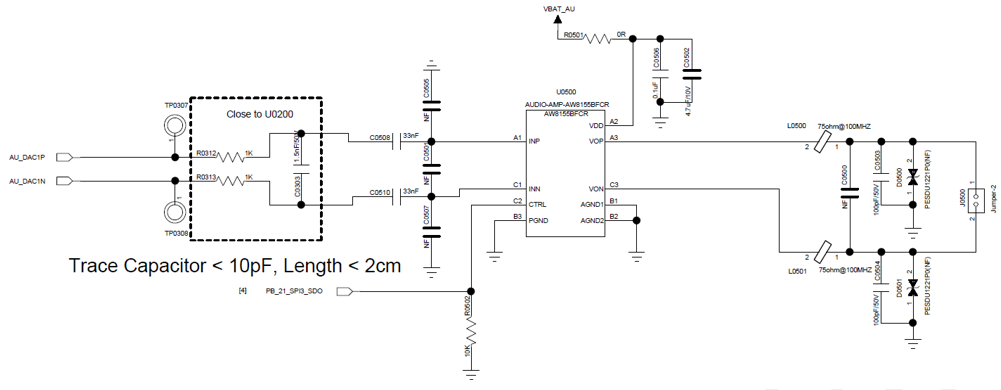

Figure 5.5-3: Analog Audio PA Circuit

Figure 5.5-3: Analog Audio PA Circuit

Common Mistakes - Audio

  • Routing microphone or DAC traces near display clocks, DC/DC, RF, USB, or SDIO.
  • Placing MIC_BIAS or AVDD33_AUD filter capacitors far from the chip pins.
  • Treating DACP/DACN as independent single-ended signals instead of a differential pair.
  • Allowing high parasitic capacitance or long trace length on the analog output.

Audio Checklist

  • MIC_BIAS, ADCP, DACP, and DACN component placement is reviewed against the layout examples.
  • DACP/DACN are routed as a short, shielded differential pair.
  • Audio filter capacitors are close to their pins and grounded cleanly.
  • Bring-up plan covers microphone bias, ADC noise floor, DAC output, PA enable, and audible noise.

Complete the microphone and DAC paths

The source connects both MEMS_MIC_ADC_IN and ECM_MIC_ADC_IN to ADCP. Include the series DC-blocking capacitor of at least 2.2 uF required above; the 0.01 uF shunt capacitor shown in the microphone circuits is not a substitute. Place the differential low-pass filter in the dashed box of Figure 5.5-3 close to the MCU, keeping the DAC output trace capacitance below 10 pF and length below 2 cm.

5.5.3. Buttons

Quick Summary

  • PA34 supports the power button, power on/off behavior, and long-press reset.
  • Rotary encoder buttons should follow the reference circuit and be reviewed together with wake, debounce, and ESD requirements.

Design Goal

Provide reliable user-input and reset behavior without false wake events, stuck reset states, or high standby leakage through pull networks.

5.5.3.1. Power Button

PA34 supports long-press reset and can be designed as a combined power on/off and long-press-reset button. The long-press reset function is active-high, so the default state should be pulled low and driven high when the button is pressed.

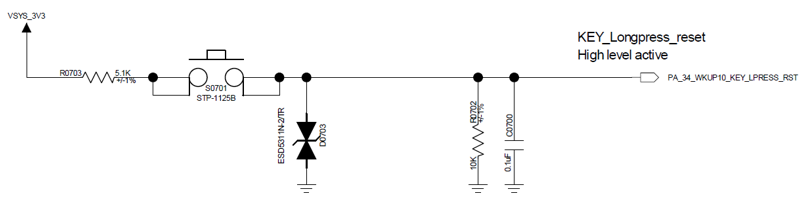

Figure 5.5-4: Power / Long-Press-Reset Button Circuit

Figure 5.5-4: Power / Long-Press-Reset Button Circuit

The reference circuit uses R0703 (5.1 kΩ) between VSYS_3V3 and the button, with R0702 (100 kΩ) pulling PA34 low and C0720 (0.1 uF) connected to ground. It also includes an ESD protection device. These values describe the illustrated design; check the input thresholds, debounce behavior, leakage, and reset timing when adapting it.

5.5.3.2. Mechanical Rotary Encoder Button

Use the reference design as the baseline for the rotary encoder button circuit.

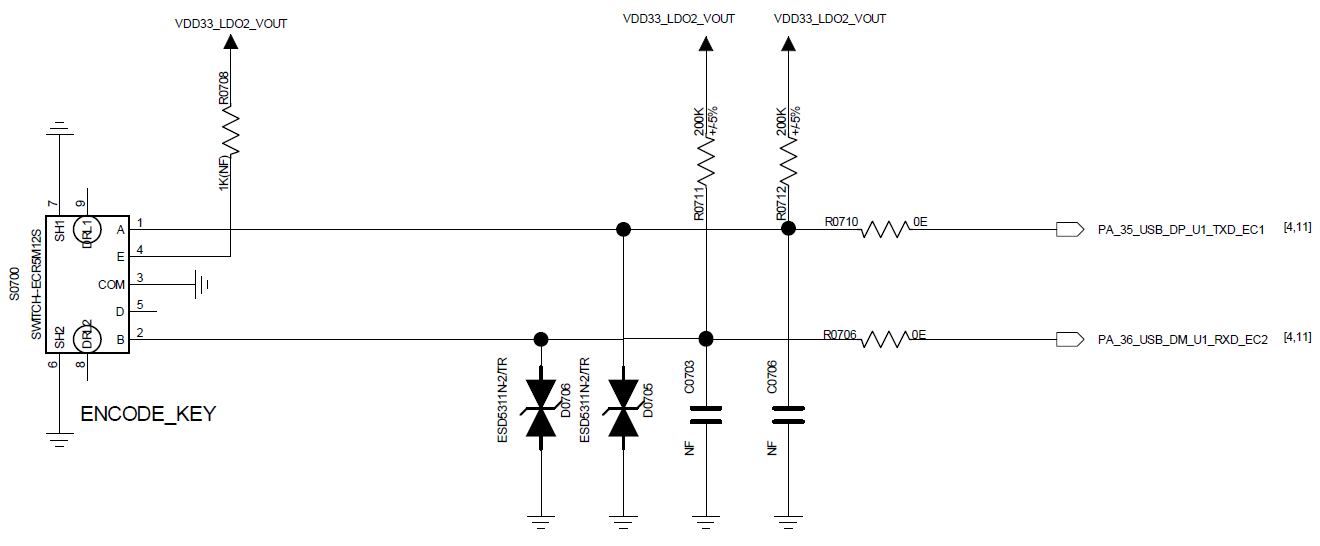

Figure 5.5-5: Mechanical Rotary Encoder Button Circuit

Figure 5.5-5: Mechanical Rotary Encoder Button Circuit

The encoder's A and B signals connect to PA35 and PA36 through 0 Ω resistors. Each signal has a 200 kΩ pull-up to VDD33_LDO2_VOUT and ESD protection; C0703 and C0706 are marked NF (not fitted). The signal labels also identify USB/UART multiplexed functions, so check pin conflicts before adopting this assignment.

Common Mistakes - Buttons

  • Leaving PA34 floating or biased to the wrong default level.
  • Forgetting that button circuits may need wake, ESD, debounce, and production-test access.
  • Sharing button nets with noisy or heavily loaded functions without checking wake reliability.

Button Checklist

  • Power/long-press-reset default level is correct.
  • Wake behavior is verified for the intended low-power states.
  • ESD and mechanical debounce requirements are reviewed.
  • Bring-up plan includes short press, long press, wake, and reset behavior.

5.5.4. Vibration Motor

Quick Summary

  • Use a PWM output to drive the vibration motor through an external driver stage.
  • Power the motor from a switchable rail where standby current matters.

Design Goal

Deliver repeatable haptic feedback while keeping motor surge current, switching noise, and standby leakage away from sensitive rails and wake circuits.

The SF32LB52x supports a PWM output for driving a vibration motor through an external driver stage.

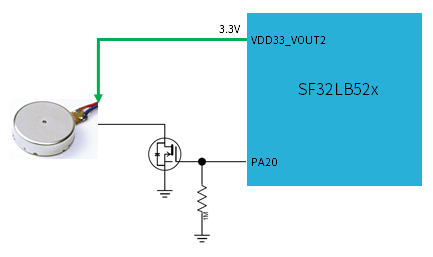

Figure 5.5-6: Vibration Motor Driver Circuit (SF32LB520/3/5/7 reference; functionally equivalent on the regular-powered variant)

Figure 5.5-6: Vibration Motor Driver Circuit (SF32LB520/3/5/7 reference; functionally equivalent on the regular-powered variant)

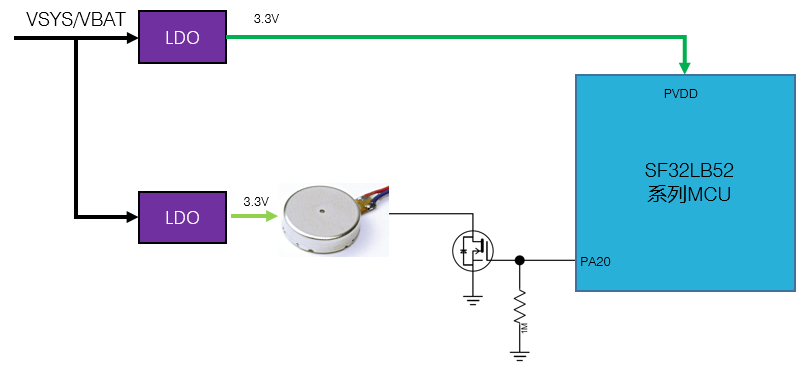

Figure 5.5-7: Vibration Motor Driver Circuit (52B/D/E/G/J Reference)

Figure 5.5-7: Vibration Motor Driver Circuit (52B/D/E/G/J Reference)

Both motor examples use PA20 to control a low-side MOSFET, with a 1 MΩ gate pull-down. Figure 5.5-6 powers the motor from the chip's 3.3 V VDD33_VOUT2 output. Figure 5.5-7 instead uses separate external 3.3 V LDOs for the motor and PVDD, supplied from VSYS/VBAT. The control function is equivalent, but the supply connections are not interchangeable.

Motor Checklist

  • Motor driver, flyback/ESD protection, and supply current rating are reviewed.
  • Motor rail default state is off in standby and shipping states.
  • PWM pin assignment does not conflict with display, storage, or debug pins.
  • Bring-up plan covers PWM duty sweep, start current, audible noise, and standby leakage.
