Capture Logs and Analyze Crashes

The SDK's debug_logging and crash_analysis guides are complementary: logs explain what the two cores were doing, while a captured memory image lets a debugger recover the failing context. Keep the exact ELF, map/symbol files, SDK revision, chip model, configuration, and board revision with every capture.

Choose a debug connection

Table: Debug and log connections by SF32 family

Family Debug and log behavior
SF32LB52x, SF32LB56x, SF32LB58x The source guide documents UART capture, SifliUsartServer/AssertDumpUart, and J-Link/Trace32 recovery. Use the transport that remains available in the selected sleep state.
SF32LB55x SWD can be switched between HCPU and LCPU with $SDK_ROOT/tools/segger/jlink_hcpu_a0.bat and jlink_lcpu_a0.bat. LCPU's ROM console is UART3 at 1,000,000 baud; HCPU can use UART1/2 or SWD. Because SWD uses PB IO, keep LPSYS active or in light sleep while connected.

When LPSYS wakes from standby, SWD returns to HCPU. A J-Link reset does not itself switch the selected core. If asynchronous logging is enabled, an assert dump can be truncated; use a synchronous or retained capture for the failure path.

Capture a live or post-mortem package

For current SDK releases, capture over UART or J-Link with sdk.py:

Example scope

The command below is an SF32LB52/LB525 example. Keep the command structure, but replace the chip/model, core, transport, and ELF with values supported by the target family and SDK release.

sdk.py crash-dump capture-live --transport uart --probe /dev/ttyUSB0 \
  --chip SF32LB52 --chip-model LB525 \
  --output /tmp/live-crash --elf build_hcpu/main.elf

Add --include-psram --psram-size 8MB when the target uses PSRAM. A J-Link probe can use --transport jlink --jlink-ip 127.0.0.1:19025; select the affected core with --core hcpu or --core lcpu. The output directory should contain the captured binary, core ELF/AXF, log.txt, manifest.json, and sdk_manifest.json.

For older SDKs, use the family-specific method in the source guide:

  • UART: SifliUsartServer or AssertDumpUart can export an assertion package while the console is available.
  • J-Link/SWD: add J-Link to PATH, then run the script for the target family; for example, SF32LB55x uses $SDK_ROOT/tools/crash_dump_analyser/script/save_ram_55x.bat. The matching script saves RAM, EPIC registers, and PSRAM.
  • Ensure RTOS → RT-Thread Kernel → Memory Management → Enable memory trace is enabled when heap-leak evidence is needed.

For script-based capture, match the .jlink file to both the target family/PSRAM configuration and the connection method. Use an IP-mode script with the SifliUsartServer path and a USB-mode script for a direct J-Link connection; a mismatch can cause capture to fail.

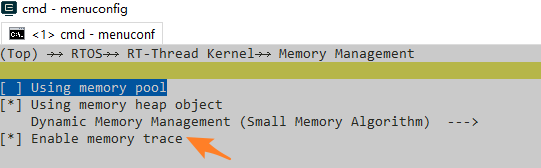

SF32LB52x memory-trace option in menuconfig

Figure: SF32LB52x guide example — enable memory trace before reproducing a failure when heap evidence is required.

UART capture normally requires matching the serial utility, server address, and target core. The following screenshots from the guide are useful connection checks:

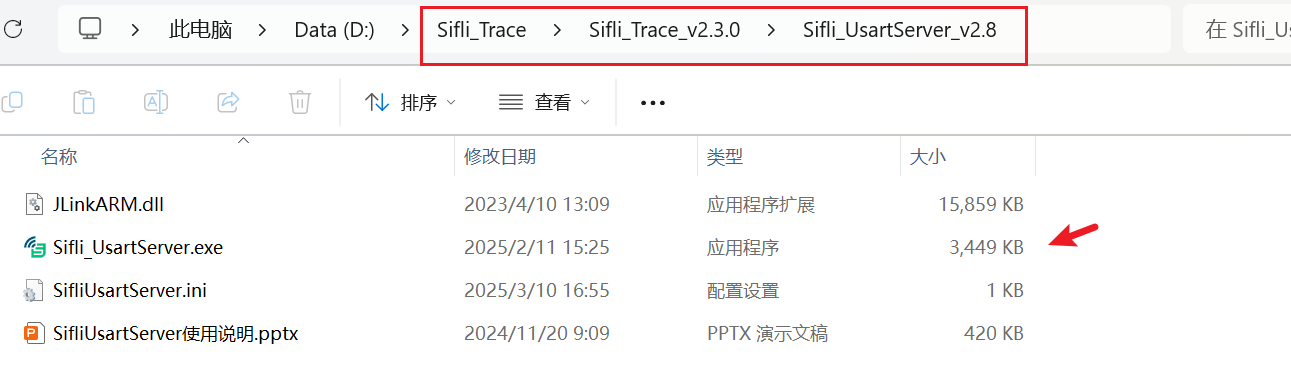

SiFli_Trace and SifliUsartServer tool location

Figure: SF32LB52x guide example — tool directory.

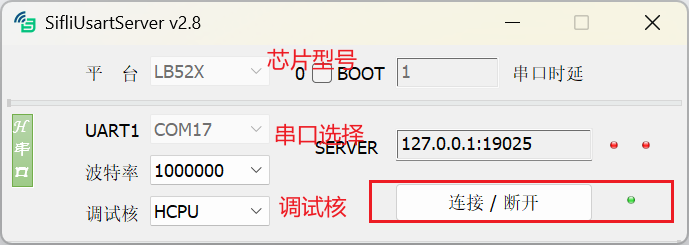

SifliUsartServer SF32LB52x connection settings

Figure: SF32LB52x guide example — the serial port, baud rate, server address, and debug core must match the captured target.

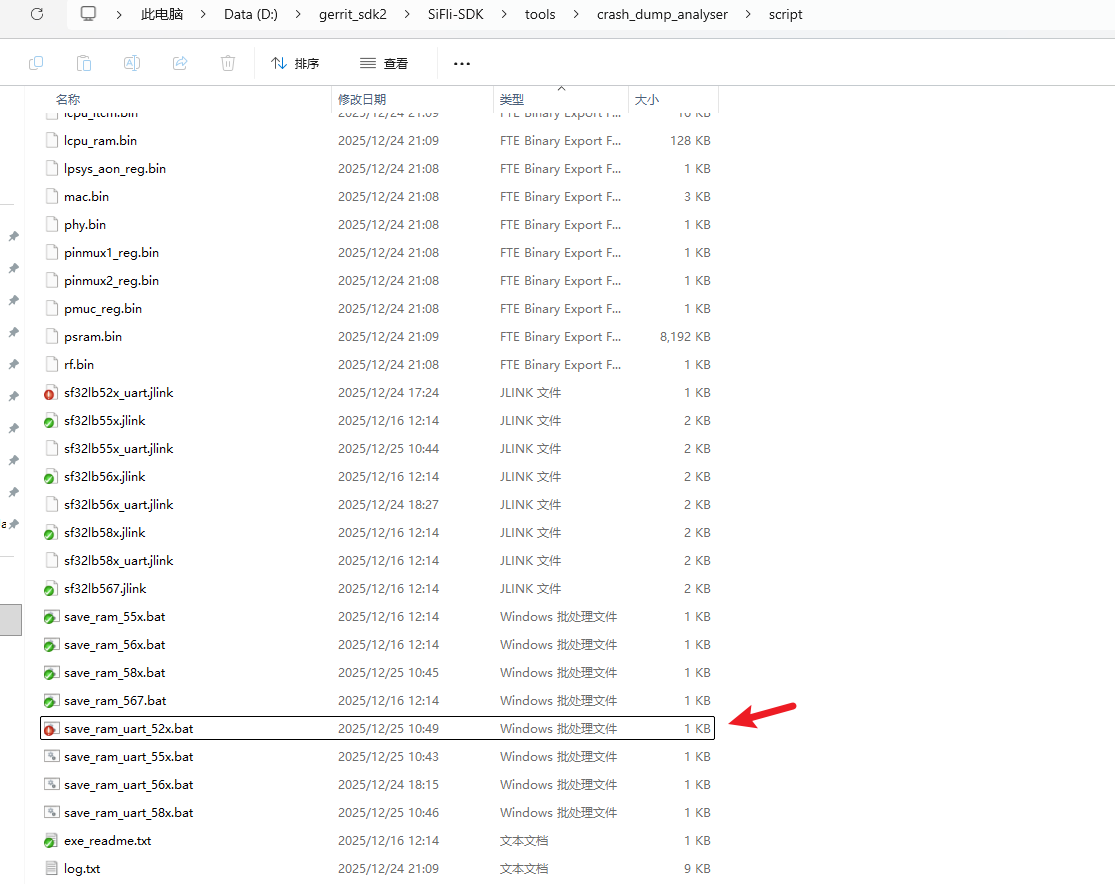

Crash-dump analyzer RAM-save script

Figure: SF32LB52x guide example — the directory includes family- and transport-specific scripts such as `save_ram_55x.bat`, `save_ram_58x.bat`, and `save_ram_uart_52x.bat`; choose the one that matches the target and connection.

Restore and analyze the context

Convert a captured package to a debugger-readable core and analyze it with the matching ELF:

sdk.py crash-dump readcore --package /tmp/live-crash \
  --elf build_hcpu/main.elf --output /tmp/live-crash/coredump.elf
sdk.py crash-dump analyze --core /tmp/live-crash/coredump.elf \
  --elf build_hcpu/main.elf

The older Trace32 workflow loads an HCPU assertion package with the HCPU assertion (HA) button and run_next_step; use the LCPU recovery configuration for an LCPU dump. If no exception stack is displayed, verify the core selection, ELF, and memory ranges before interpreting registers.

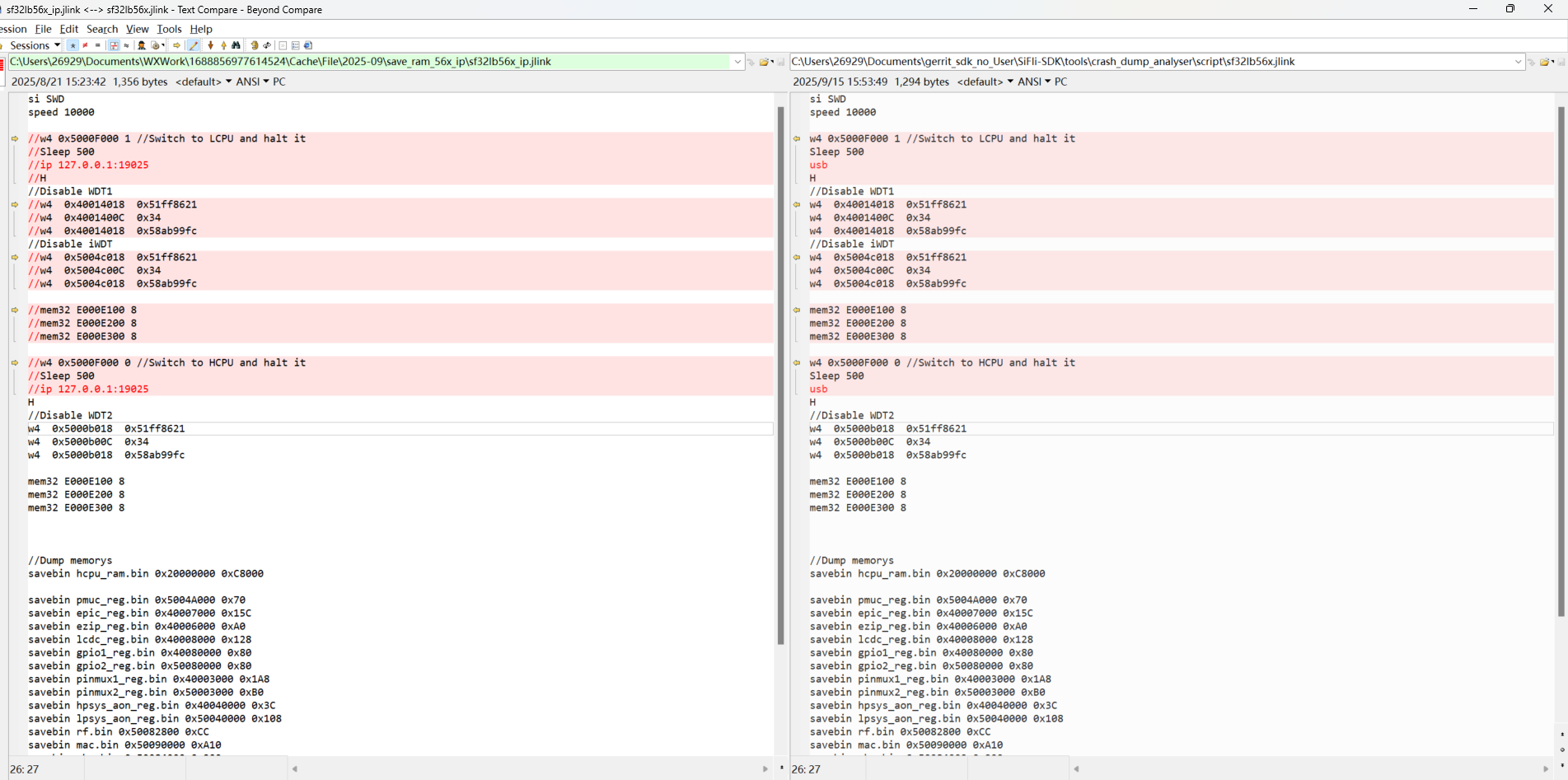

Trace32 capture-script selection example

Figure: SF32LB52x guide example — J-Link/Trace32 capture-script selection.

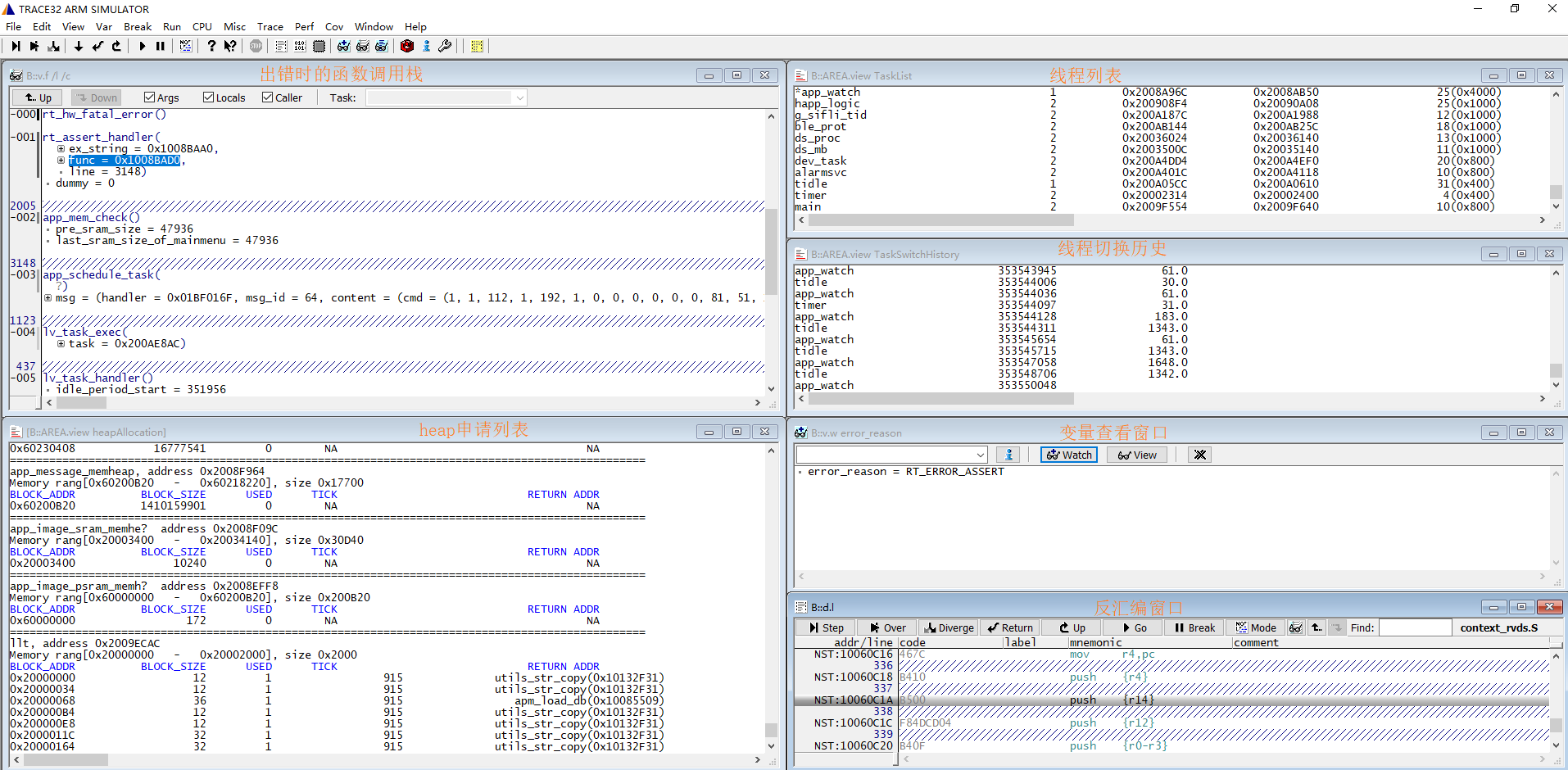

Trace32 HCPU assertion window

Figure: SF32LB52x guide example — inspect the call stack, thread list, heap, and error reason together after recovery.

Stop early during boot or a suspected race

To debug initialization, uncomment the first instruction in the matching Reset_Handler so it becomes B .:

The startup-file paths below are SF32LB55x source paths; use the corresponding startup files for another family.

  • HCPU: $SDK_ROOT/drivers/cmsis/sf32lb55x/Templates/arm/startup_bf0_hcpu.S
  • LCPU: $SDK_ROOT/drivers/cmsis/sf32lb55x/Templates/arm/startup_bf0_lcpu.S

Connect J-Link and advance the PC by two bytes to continue. In C, _asm("B ."); creates the same intentional stop. Do not replace it with while (1);; the compiler may optimize away code after the loop.

Read the evidence

An assertion dump normally includes the assertion function and line, thread table, mailbox and message-queue state, mutexes, semaphores, heap usage, and CPU registers. Correlate the failing PC with the exact ELF, then check stack headroom, ownership of any resource involved in a blocked wait, queue entries, and the last log entry before the failure. Preserve the raw dump before symbolizing it.

For interactive inspection, Ozone can load the HCPU/LCPU ELF and the matching Cortex-M33-with-FPU SVD from $SDK_ROOT/tools/svd_external. Use UART or SifliUsartServer when the core is in a state where SWD cannot attach. ULOG can use UART; after enabling RTT support, select segger as the RT-Thread log device to use Segger RTT.

Instrument bus and memory failures

The SDK bus monitor can capture accesses that lead to a bus fault. Register a callback with dbg_busmon_reg_callback, then use dbg_busmon_read and dbg_busmon_write from the example in the guide to inspect the relevant address range. Pair this with heap tracing and the crash package; a register dump without symbols or memory context is rarely sufficient.

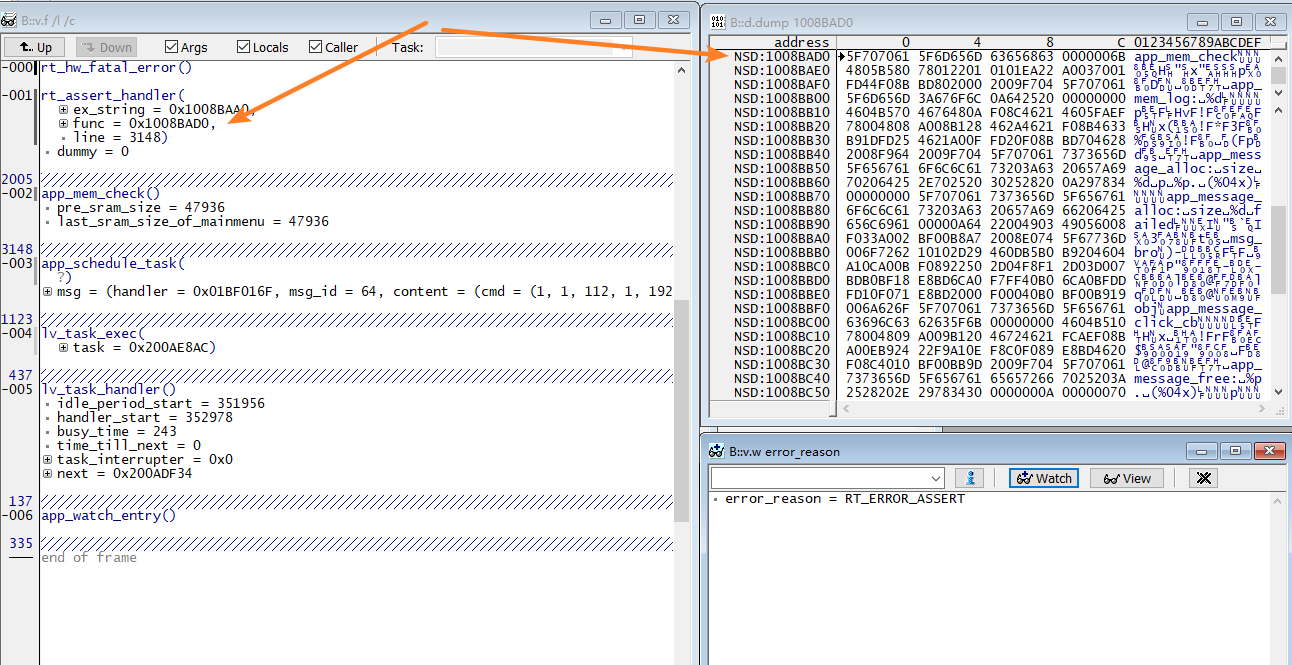

Trace32 heap call-stack example

Figure: SF32LB52x guide example — heap call stack and memory windows.

Official family sources: SF32LB52x crash analysis, SF32LB55x, SF32LB56x, SF32LB58x, and the matching debugging and logging guide.
