Configure and Measure Low Power¶

The SiFli SDK low-power guides cover several SF32 architectures. SF32LB52x, SF32LB55x, and SF32LB56x use an HCPU in HPSYS (up to 240 MHz) for high-performance work and an LCPU in LPSYS (up to 48 MHz) for Bluetooth and sensor tasks. SF32LB57x and SF32LB58x add an ACPU to the HCPU/LCPU architecture; the 58x low-power LCPU runs at up to 96 MHz. Core counts, clock limits, and low-power behavior vary by family, so follow the matching SDK guide for the target device.

Configure the power-management framework¶

From the project directory, run:

sdk.py menuconfig

The following menuconfig settings are from the SF32LB52x source guide. Mode names and available options can vary by family and SDK version, so verify them against the target family's documentation before applying them.

The generated rtconfig.h normally contains RT_USING_PM, BSP_USING_PM, and the selected mode symbol. Start from example/pm/classical for a working reference. To disable the feature, reverse the same menuconfig selections.

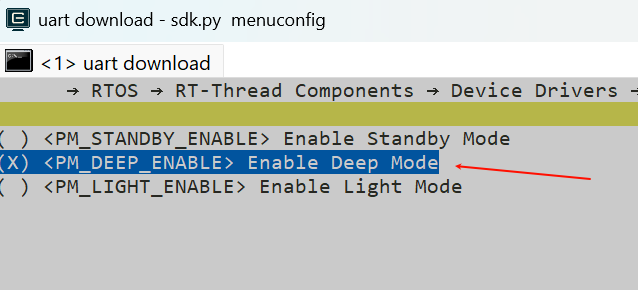

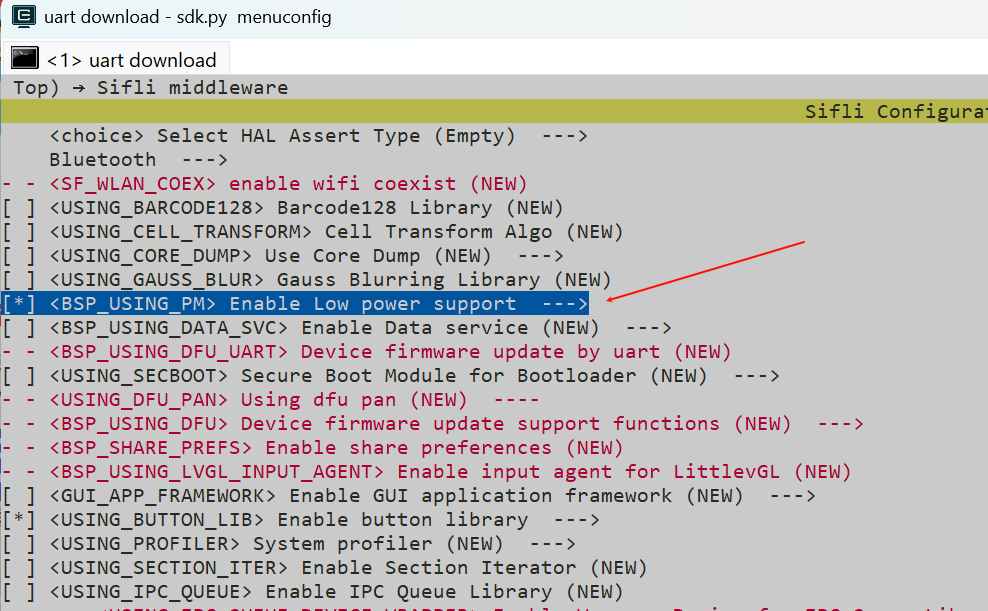

The figures below are from the SF32LB52x source guide and confirm the two key menu locations. Use the target family's SDK menu as the authority for the actual project.

Select a wake source¶

Use the board's pinmux.c/drv_io.c and the APIs in the matching SDK example.

For Hibernate on SF32LB52x, SF32LB56x, SF32LB57x, and SF32LB58x, the example below maps a GPIO to PMU wake source PIN0. It does not apply to SF32LB55x, which uses the separate procedure in the table. On SF32LB57x, the PMU wake-pin index range is 0–13; confirm the selected pin mapping against the target device's user manual and board design.

HAL_PMU_SelectWakeupPin(0,
    HAL_HPAON_QueryWakeupPin(hwp_gpio1, BSP_KEY1_PIN));
HAL_PMU_EnablePinWakeup(0, AON_PIN_MODE_HIGH);
rt_kprintf("CR:0x%x, WER:0x%x\n", hwp_pmuc->CR, hwp_pmuc->WER);

A Hibernate wake is a cold boot with PM_HIBERNATE_BOOT set; it does not resume the interrupted instruction stream like standby. If one IO must wake both standby and Hibernate, configure both paths. On 55x Hibernate wake pins are floating inputs, so provide an external pull resistor where the board requires one.

Understand the sleep states¶

The cited current SDK low-power guide does not provide a comparable 57x SRAM-retention and wake-time row. Do not copy another family's numeric retention capacity or timing to SF32LB57x; verify them against the target SDK release and device documentation.

In this table, PM_SLEEP_MODE_LIGHT, PM_SLEEP_MODE_DEEP, and PM_SLEEP_MODE_STANDBY correspond to Light Sleep, Deep Sleep, and Standby, respectively.

The family-specific values above are reference figures from the cited SDK guides, not guaranteed board timings. The SF32LB52x guide says that, when PSRAM is present, HCPU backs up data from RAM that will be powered down to PSRAM and restores it after wake; without PSRAM, it uses 64 KB of Retention RAM as the backup destination. This backup area is distinct from the SRAM retention capacity reported in the family table (the SF32LB52x Standby entry, for example, lists 384 KB of retained HPSYS SRAM). Do not assume this backup policy or capacity applies to other families unless their SDK guide confirms it. Actual current also depends on enabled peripherals, IO levels, external memory, and the board.

Control clocks while awake¶

If the idle thread cannot enter a sleep state, WFI auto-frequency reduction can lower current. It is safe only when EPIC, EZIP, LCDC, USB, and SD are idle. If an application does not use the SDK's LVGL/device bookkeeping, bracket peripheral activity with rt_pm_hw_device_start() and rt_pm_hw_device_stop(). Configure the divider with HAL_RCC_HCPU_SetDeepWFIDiv(); audio workloads normally limit the reduced clock to 48 MHz, while other workloads can use 4 MHz. Set HPSYS_RCC_DBGR_FORCE_HP as required by the SDK guide.

For active work, use rt_pm_run_enter():

pm_scenario_start()/pm_scenario_stop() provide the SDK's UI and Audio policy: either scenario active selects high speed; neither active selects medium speed. Measure energy, not only instantaneous current, because a lower clock can lengthen execution.

Understand inter-subsystem sleep sequencing¶

After the screen turns off, HPSYS can enter sleep. On 55x/56x/58x, LPSYS normally follows after HPSYS; the 52x family is the documented exception and permits independent HCPU/LCPU sleep. The cited material does not establish the same ordering for the 57x ACPU, so verify its subsystem policy in the matching SDK release. After wake, gui_resume starts a new screen-off decision cycle. Keep a core awake while a shared peripheral or IPC transaction still needs it.

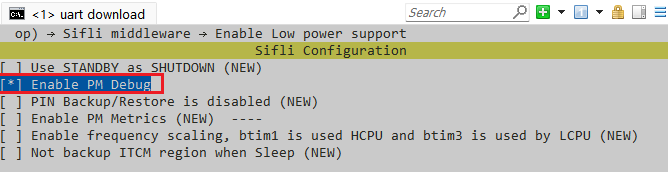

Enable BSP_PM_DEBUG temporarily and search logs for:

If an expected sleep does not occur, check list_thread, pm_dump, and list_timer. The idle thread must run, no code may hold rt_pm_request(PM_SLEEP_MODE_IDLE), the nearest OS timer must be beyond the policy threshold (typically 100 ms for HCPU and 10 ms for LCPU), wake conditions must be inactive, and IPC queues must be drained. A periodic delay shorter than the threshold can prevent sleep indefinitely.

The source guide also diagrams the “screen off → IDLE → sleep when conditions are met” path and the “key wakes LPSYS, then LCPU sends the event to HCPU through the Mailbox and the system automatically wakes HPSYS” path. These are useful for checking log order; the wording and flow are SF32LB52x examples and should not be used to infer WSR bit assignments for another family.

%%{init: {"flowchart": {"htmlLabels": true, "wrappingWidth": 260}}}%%
flowchart TD
    A["<div style='width:260px;text-align:center'>Screen-lock timeout exceeded,<br/>screen turns off</div>"] --> B["<div style='width:260px;text-align:center'>All work threads are idle,<br/>the IDLE thread runs</div>"]
    B --> C["<div style='width:260px;text-align:center'>When conditions are met,<br/>enter sleep mode</div>"]

%%{init: {"flowchart": {"htmlLabels": true, "wrappingWidth": 260}}}%%
flowchart TD
    A["<div style='width:260px;text-align:center'>Key wakes LPSYS</div>"] --> B["<div style='width:260px;text-align:center'>LCPU sends the key event to HCPU through the Mailbox,<br/>the system automatically wakes HPSYS</div>"]
    B --> C["<div style='width:260px;text-align:center'>HCPU checks the key-event type</div>"]
    C --> D["<div style='width:260px;text-align:center'>HCPU determines it is a single-click key event,<br/>then turns on the screen</div>"]

Reduce board-level leakage¶

Measure the minimum system first: disconnect the display, sensor, charger, and other removable loads, then add them back one at a time. Common leakage sources are:

• an external device that remains powered;
• an output driven high into a powered-down device;
• a floating input or mismatched pull-up/pull-down;
• PSRAM, NOR/NAND flash, eMMC, or SDIO that was not put into its low-power state;
• a 55x USB PA01 configuration that conflicts with its internal pull-down.

Implement board-specific transitions in BSP_IO_Power_Down() and BSP_Power_Up(), and use BSP_TP_PowerDown/Up and BSP_LCD_PowerDown/Up when display or touch power should change immediately at screen-off/on. If XIP executes from NOR flash, place the flash sleep/wake routine in retained RAM (HAL_RAM_RET_CODE_SECT).

Measure and record a reproducible result¶

For every measurement, record the family and SDK revision, board revision, supply voltage, meter location and bandwidth, firmware configuration, memory population, active peripherals, wake source, sleep mode, and the transition log. Report the state and test conditions with the current; never compare a bare number from a different board or mode.

Official family sources: SF32LB52x, SF32LB55x, SF32LB56x, and SF32LB58x. The SDK's PMU API reference documents the SF32LB57x Hibernate wake-pin index range.

Last updated: 2026-10-10
